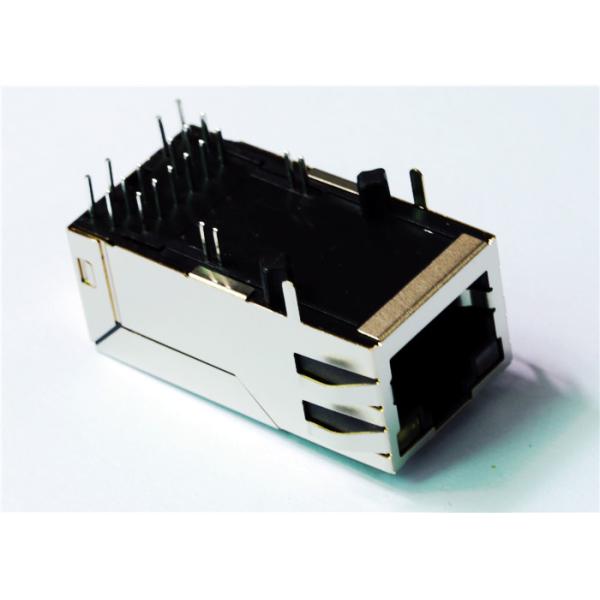

0826-1X1T-AC-F PSE Rj45 Gigabit Ethernet Socket IEEE802.3at With LED Indicators

  • 1
  • 2

Brand Name : LINK-PP

Model Number : 0826-1X1T-AC-F

Certification : ISO9001,SGS,UL,CE,REACH

Place of Origin : GuangDong, China

MOQ : 50/500/1000/25K

Price : $0.09-$1.85

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 3000000/Month

Delivery Time : Stock

Packaging Details : Optional (60pcs/try);960/box

Bel Spec : 0826-1X1T-AC-F

Analogue : LPJK2065AONL

Ethernet : Gigabit PSE

Mounting style : PCB THT

Samples : Available

Enhanced : LPJK6071AONL

Contact Now

0826-1X1T-AC-F PSE Rj45 Gigabit Ethernet Socket IEEE802.3at With LED Indicators
  • Industrial PoE Switch High PoE active Power Over Ethernet Splitter
  • Bel - MagJack Integrated Connector Modules Pin to Pin cross
  • 10/100/1000 Base-T, AutoMDIX POE Supportive
  • Through Hole,Shielded, EMI Finger,90° Angle (Right)
  • RJ45 Connector with integrated transformer & POE
  • ISO9001,SGS,UL,CE,REACH
  • Customers:TI,Intel,GE,Sony,Samsung
  • Other Name: LPJK2065AONL Compatible Analogue
  • LPJK6071AONL Enhanced
  • 0826-1X1T-AC-F PSE Rj45 Gigabit Ethernet Socket IEEE802.3at With LED Indicators
0826-1X1T-AC-F PSE Rj45 Gigabit Ethernet Socket IEEE802.3at With LED Indicators
Type PCB Mount
Thru-Hole (THT) LPJK2065AONL / LPJK6071AONL
Number of Ports
1, 2, and 4 Ports and Stackable 2x1, 2x2, 2x4, 2x6 and 2x8
Shield and Unshield
Available in Shield and Unshield
Connector Type
RJ45
PoE
Power Over Ethernet Integrated
Magnetics
Magnetic Integrated
Magnetics Speed
Magnetics 10/100Mbps and 1Gigabit
Packaging
Tray Options
Tab Location
Tab Up and Tab Down Options
LED Color
Optional
Number of Positions
8 and 10 Positions or Others
Number of Contacts
8 and 10 Contacts or Others
RoHS Compliant
Yes
Solder Temperature
230 TO 240 degr.C 5-10 SECONDS
Solder High-Temp Option
260 degr.C 5-10 SECONDS
High Temperature Option
-40 to +85 Degrees F
Operating Temperature
-0 to 70 Degrees C
